64 Channel NVR Recorder
+ KDV
1
64 Channel NVR Recorder
New

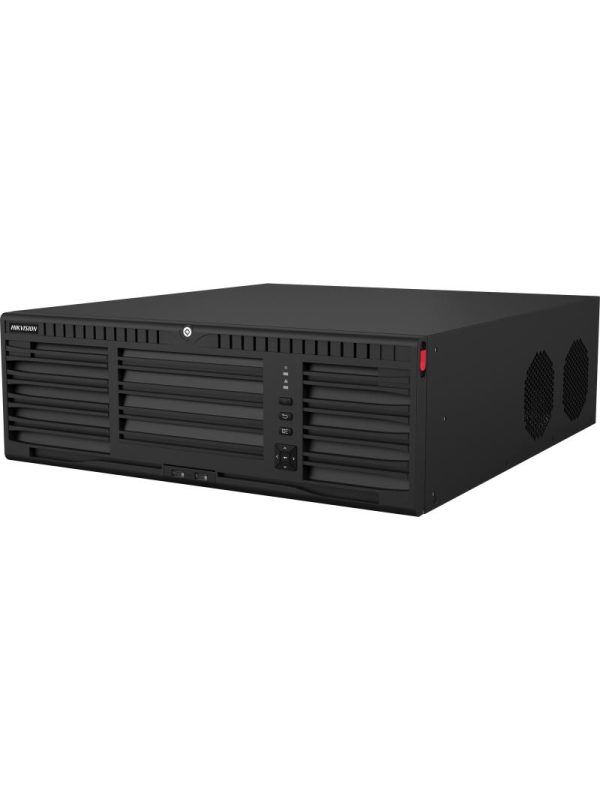

Hikvision 64 Channel NVR Recorder
- 64 channels IP camera recording
- 400 Mbps incoming bandwidth, 400 Mbps outgoing bandwidth
- 2 HDMI, 2 VGA interfaces, 8K or dual 4K video output
- Supports special cameras including people counting camera, ANPR camera, fisheye camera
- RAID 0, 1, 5, 6, 10 and N + M hot spare
- Backup power supply
- 8 channel IP speaker can be connected
DS-9664NI-M16/R| Video | |
| Number of Channels | 64 channel |
| Network | |
| Band Width | Incoming Bandwidth: 400 Mbps, Outgoing Bandwidth 400 Mbps |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| RAID | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Hard Disk | |
| SATA | 16 SATA interfaces supporting hot-plug |
| Interface Unit | |
| Audio Compression Format | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Audio In / Out | 1/2 |
| Alarm Input/ Output | 16/9 |
| General Features | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz, redundant power supply |
| Power Consumption | ≤ 50 W |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Dimension | 442 × 498 × 146 mm (17.4" × 19.6" × 5.8") |
| Weight | ≤ 12.5 kg |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
